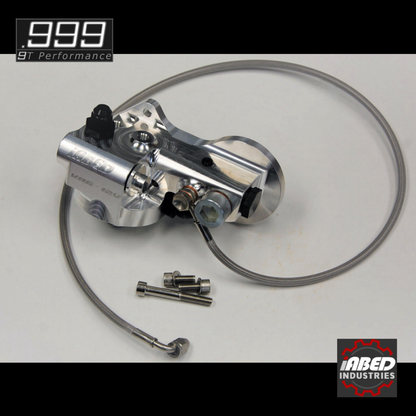

iABED Industries 12v Billet Oil Filter Housing w/ Built In Thermostat
The ultimate solution for an oil filter housing for your 12V VR6 . This combines both 462-635-0028 & 462-635-0029 into 1 single unit while eliminating the need for an add on sandwich plate.
Fits all 2.8 | 2.9 12V VR6 from 1991 till 2001.
Key features include :
- ¾-16” threaded nipple for any screw on oil filter (Most common being either 06A 1.8T or similar)
- MOCAL 90°C Thermostat incorporated into the housing allowing the installer to not need an additional thermostatic sandwich plate. (essentially an upgrade over 462-635-0028).
- M12 x 1.5 port for turbocharger oil feed.
- 1/8” NPT port for aftermarket Oil Pressure / Temperature sender
- 3 x M10 x 1.0 ports for OEM oil senders
- Compact lightweight design with material removal in non-critical areas to save on weight.
- Elimination of OEM heat exchanger to create all in one solution.
Build of Materials:
- (1) CNC Machined Housing
- (1) MOCAL Thermostat
- (1) 1/8” NPT broached plug
- (1) ¾-16” Threaded fitting
- (2) AN-10 Male ORB to Union fitting
- (1) AN-10 ORB plug
- (1) ¾-16” 70mm UHL Zinc plated Bolt
- (1) CWM20 copper crush washer
- (1) M12 x 1.5 broached plug
- (1) CWM12 copper crush washer
- (2) 17 x 3mm N70 O-ring
- (1) 24 x 3mm N70 O-ring
- (1) 65 x 3mm N70 O-ring
- (1) M8 x 60mm stainless steel socket cap screw
- (2) M8 x 25mm stainless steel socket cap screw
- (2) M8 Stainless steel washer
N.B.

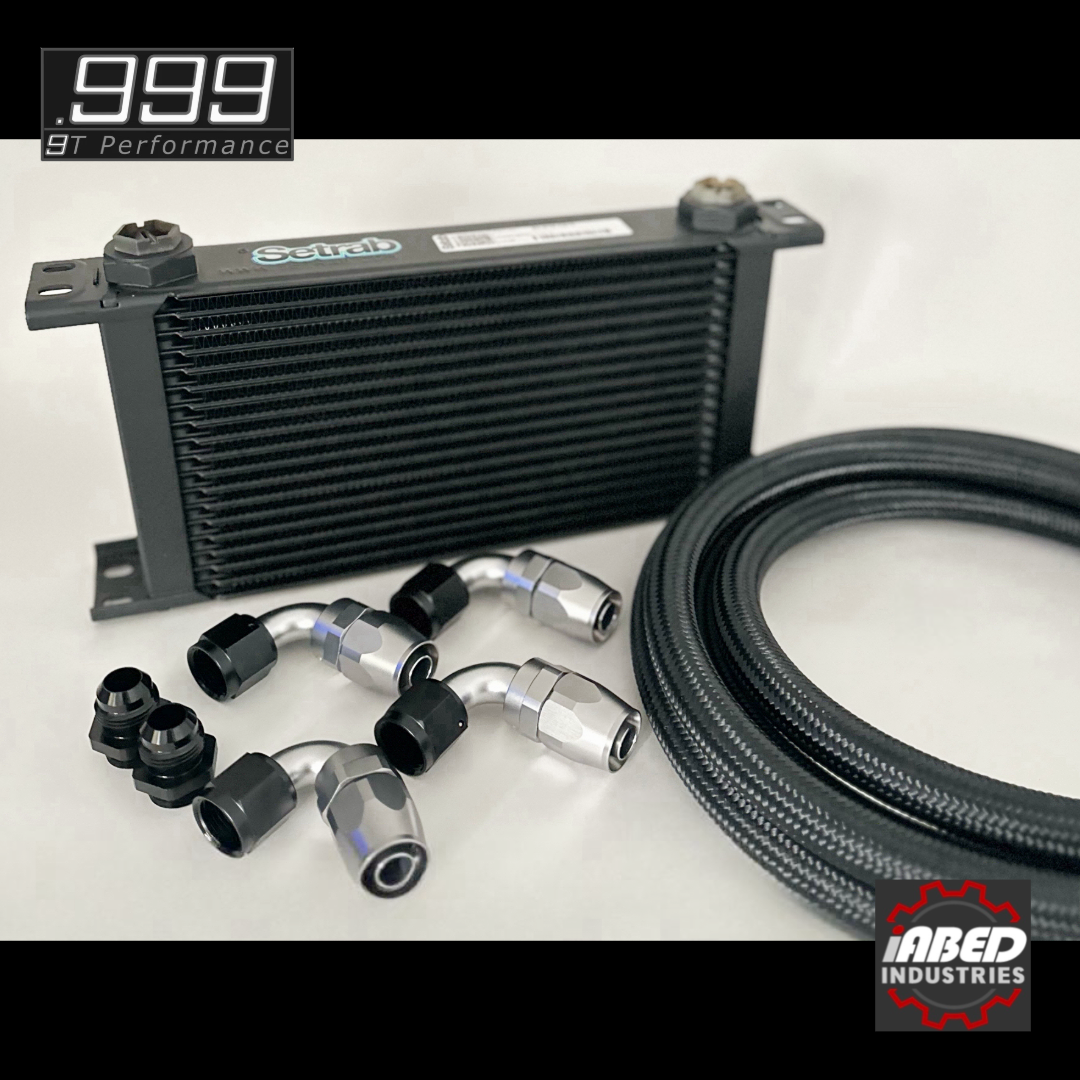

This product requires purchasing an additional air cooled oil cooler (Setrab , Mocal , etc). It can be used in conjunction with the OEM heat exchanger if requested to switch the ¾-16” threaded fitting for an OEM unit.
