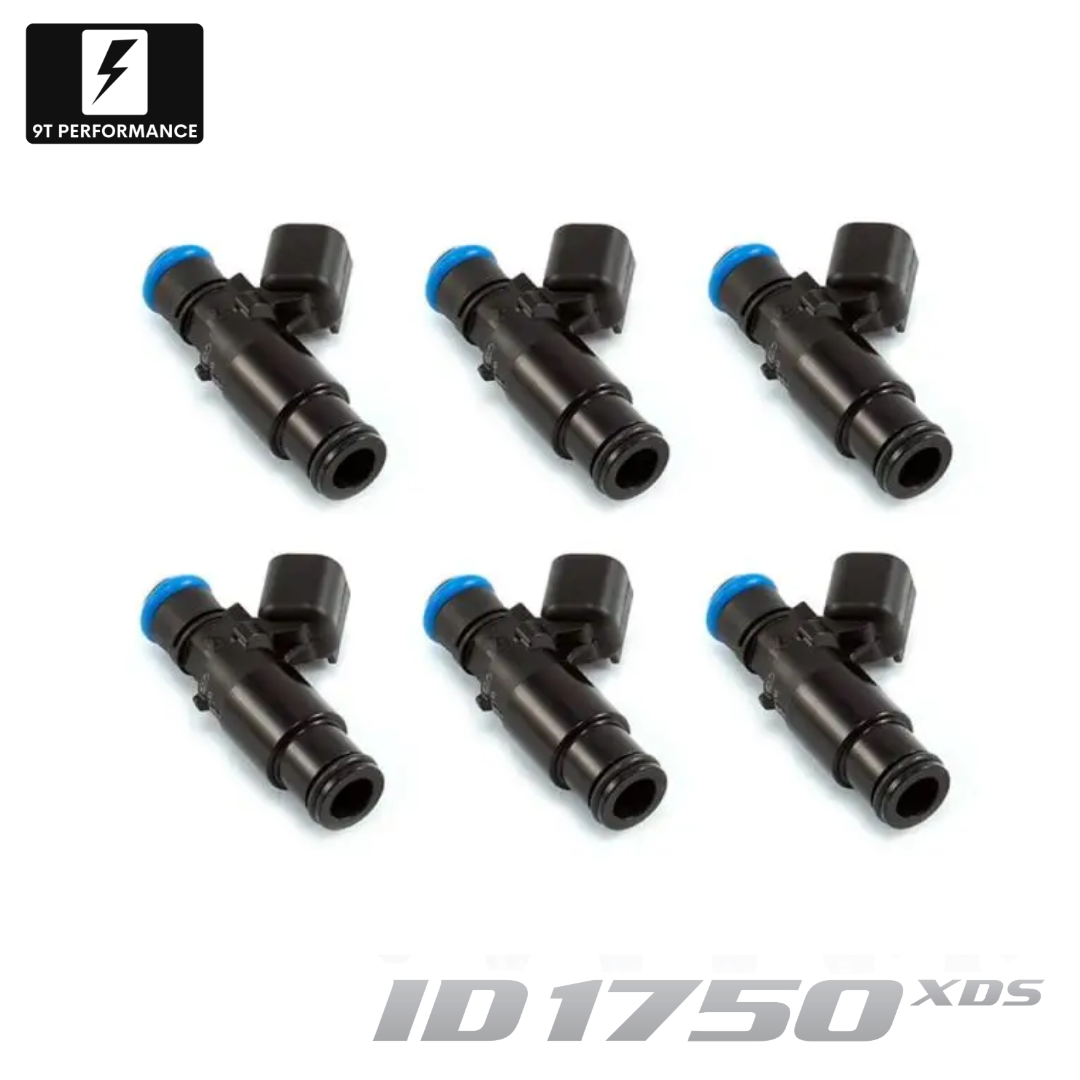

Injector Dynamics ID1750-XDS Injectors - 3.2L 24v VR6
Injector Dynamics ID1750-XDS Injectors - 3.2L 24v VR6
Injector Dynamics ID1750-XDS Injectors - 3.2L 24v VR6
The Best Just Got Better! The ID1750-XDS is the successor to the ID1700, featuring numerous improvements.
Comparing the ID1750-XDS to the 1700:
- Higher Dynamic Flow Rate With no Increase in Minimum Fuel Mass.
- Better Cylinder to Cylinder Balance at Low Pulsewidths.
- Improved Pressure Sensitivity.
The ID1750-XDS is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1750-XDS was designed to fill the gap between the ID1300X and the ID2600, and like the ID1300X, it features corrosion resistant internals making it compatible with all known automotive fuels.
A unique magnetic circuit, resulting from a lengthy development program, makes the ID1750-XDS immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1750-XDS excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.
- Corrosion resistant internals make it compatible with all known fuels, capable of extended service life with corrosive fuels.
- Compact body allows fitment in 200+ applications, including current and future engines utilizing short body injectors.
- Improved internal flow path increases output by 5% without sacrificing low flow performance.
- Stronger magnetic circuit offers stable operation up to 10 bar.
- Replaceable inlet filter extends service life.
Basic Specifications
- Nominal Flow Rate – 1728cc/min @ 3.0 Bar (43.5 psi), Using E10 Emissions Certification Fuel at 49 Degrees C (120F)
- Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
- Fuel Compatibility – Compatible with Methanol/Ethanol/MTBE/Nitromethane/All Known Hydrocarbon Fuels.
- Electrical Connector – USCAR
