Nuke Performance 0-90 Ohms Fuel Level Sending Unit - 8"-16"

Nuke Performance 0-90 Ohms Fuel Level Sending Unit - 8"-16"

$308.50 USD
$180.00 USD $308.50 USD
Sale Sold out
Available Sizes

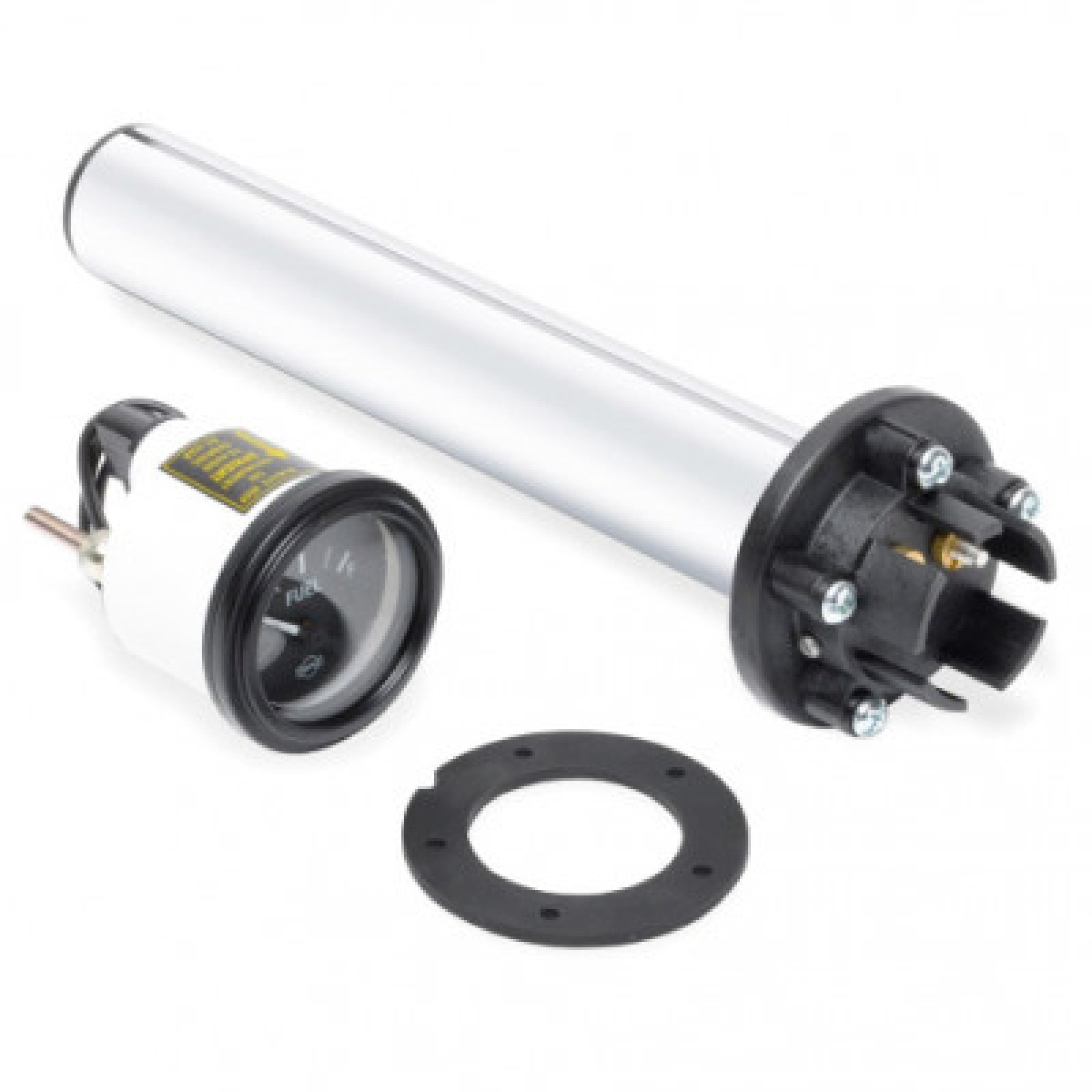

Add Fuel Level Gauge - 0-90 Ohms

Nuke Performance Fuel Level Sending Unit

This Pyrotect fuel level sending unit fits the Nuke Performance CFC Units and can be installed in all standard as well as custom fuel cells, tanks, or bladders. 0-90 Ohms fuel level sending unit available with optional fuel gauge that fits standard SAE 5-bolt mounting pattern and in a variety of heights. Fits most common fuel cells including Pyrotect, ATL, Fuel Safe, Harmon, Premiere, etc. and is the perfect match to the Nuke Performance Competition Fuel Cell Unit - the drop in fuel pump hanger with integrated surge tank that mounts to any 24 bolt 6x10" fuel cell.

Fits fuel cells provided by Nuke Performance:

 150-FLS-08 : 203 mm / 8" Pyrotect 6.25 gallon fuel cell
Pyrotect 8 gallon fuel cell
ATL 30 liter saver cell
ATL 45 liter saver cell
ATL 45 liter Well Cell saver cell
ATL 60 liter saver cell
ATL 80 liter saver cell
 150-FLS-09 : 228 mm / 9" Pyrotect 10 gallon fuel cell
Pyrotect 12 gallon fuel cell
Pyrotect 15 gallon fuel cell
Pyrotect 18 gallon fuel cell
Pyrotect 22 gallon fuel cell
ATL 40 liter saver cell
AluCell 20 liter aluminum fuel cell
AluCell 40 liter aluminum fuel cell
AluCell 45 liter Wellcell fuel cell
AluCell 60 liter aluminum fuel cell
 150-FLS-10 : 254 mm / 10" N/A
 150-FLS-12 : 305 mm / 12" Pyrotect 17 gallon fuel cell
AluCell 80 liter aluminum fuel cell
 150-FLS-13 : 330 mm / 13" Pyrotect 24 gallon fuel cell
 150-FLS-15 : 381 mm / 15" Pyrotect 26 gallon fuel cell
Pyrotect 32 gallon fuel cell
 150-FLS-16 : 406 mm / 16" N/A


Ohm resistance:
0 Ohms : empty
90 Ohms : full

Optional specifications:
Also available as 240-33 Ohms

Approved for all types of fuels, for all types of motorsports
Approved for pump gas, methanol, and ethanol. Available in several different lengths, choose the size when placing an order. If ordered together with a fuel cell we will make sure that you get the right one delivered with your order.
