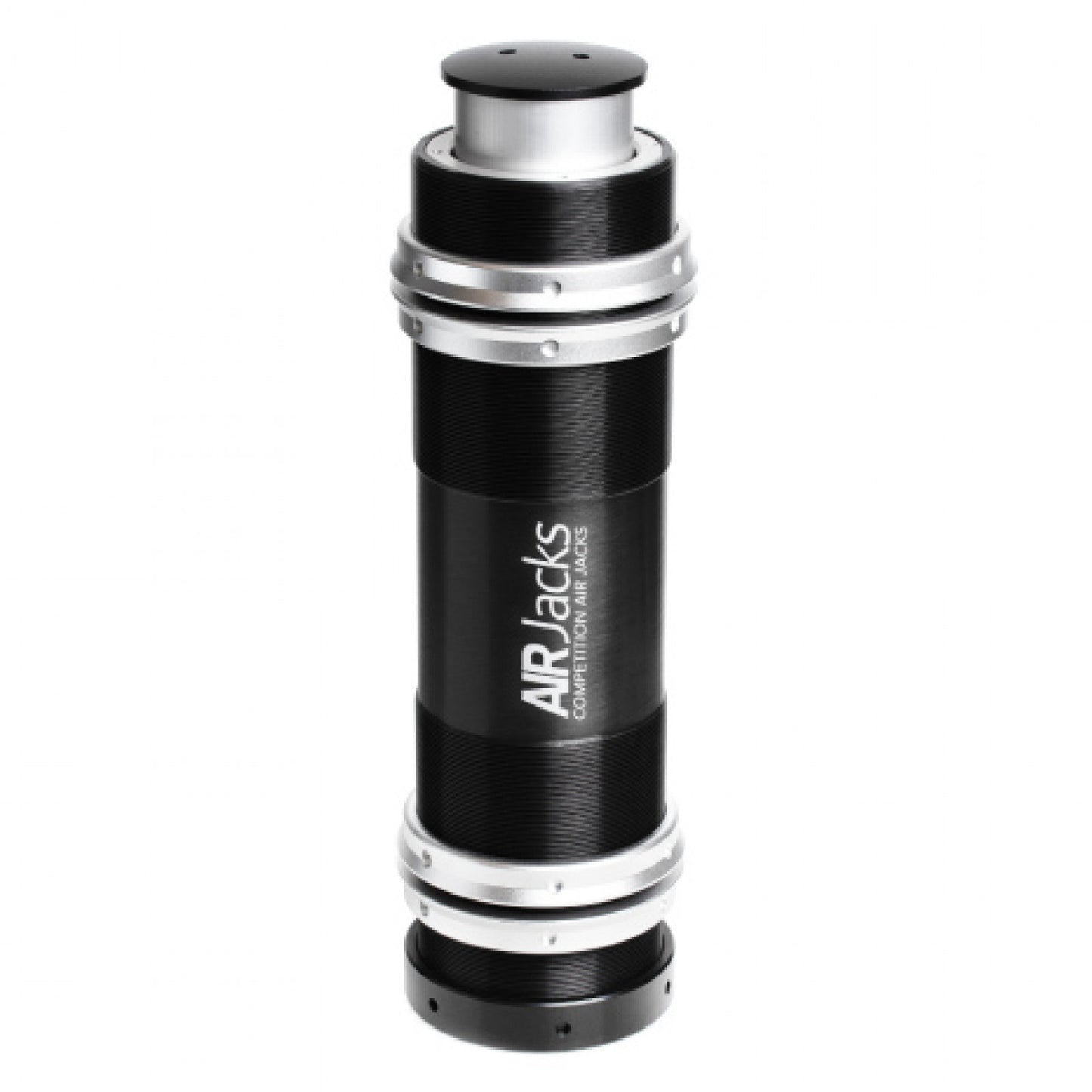

Nuke Performance Air Jack 90 Competition, 8 BAR / 120 PSI

The Nuke Performance 8 BAR (120 PSI) Air Jack 90 Competition is fast, lightweight, reliable and extremely easy to use and can be activated by an air supply pressure of as low as 8 BAR (120 PSI). Prepare yourself for anything that may go wrong during the track day and with these air jacks you are ready for fast and effective repairs so you can quickly hit the race track again.

Made of high strength aluminum for low weight and extra durability

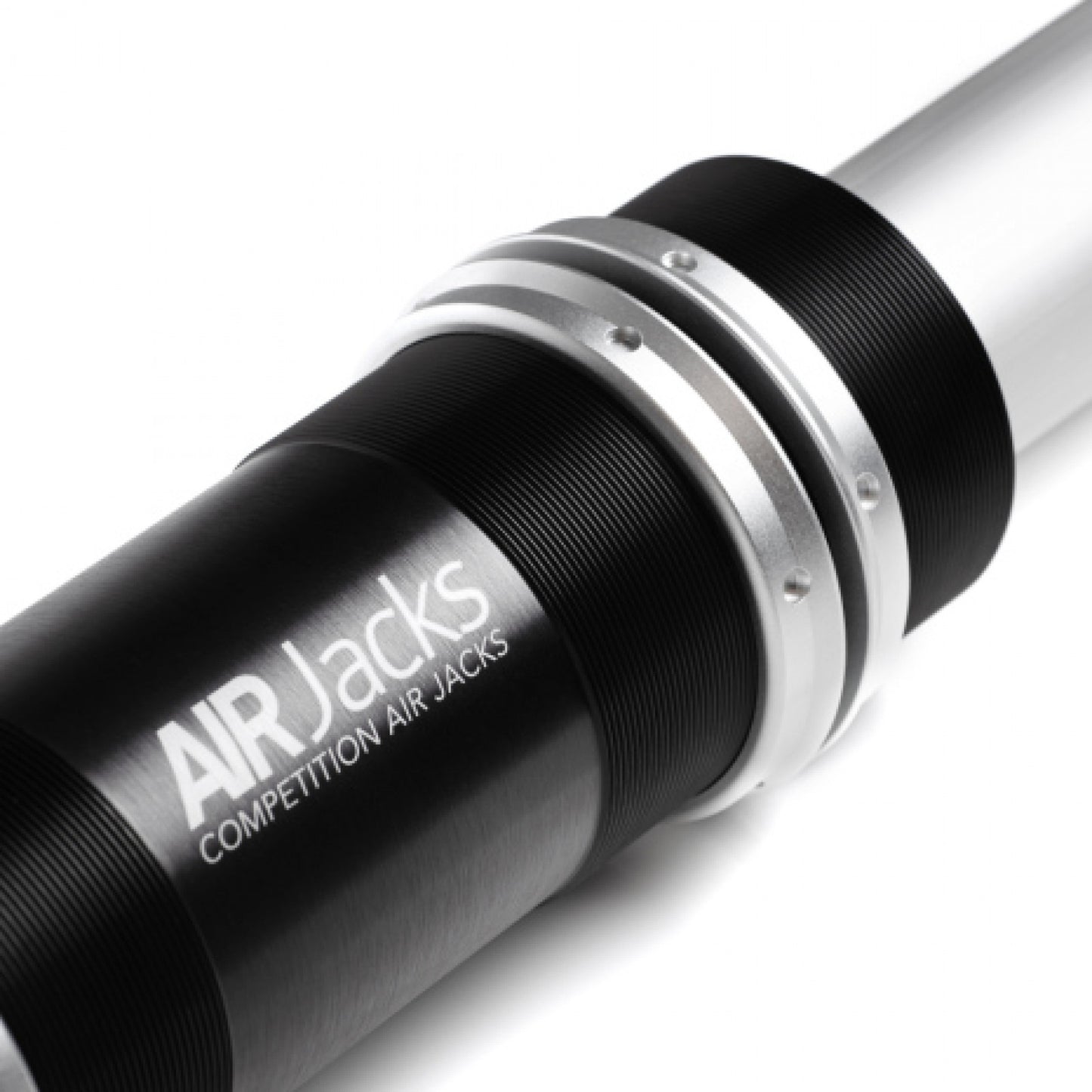

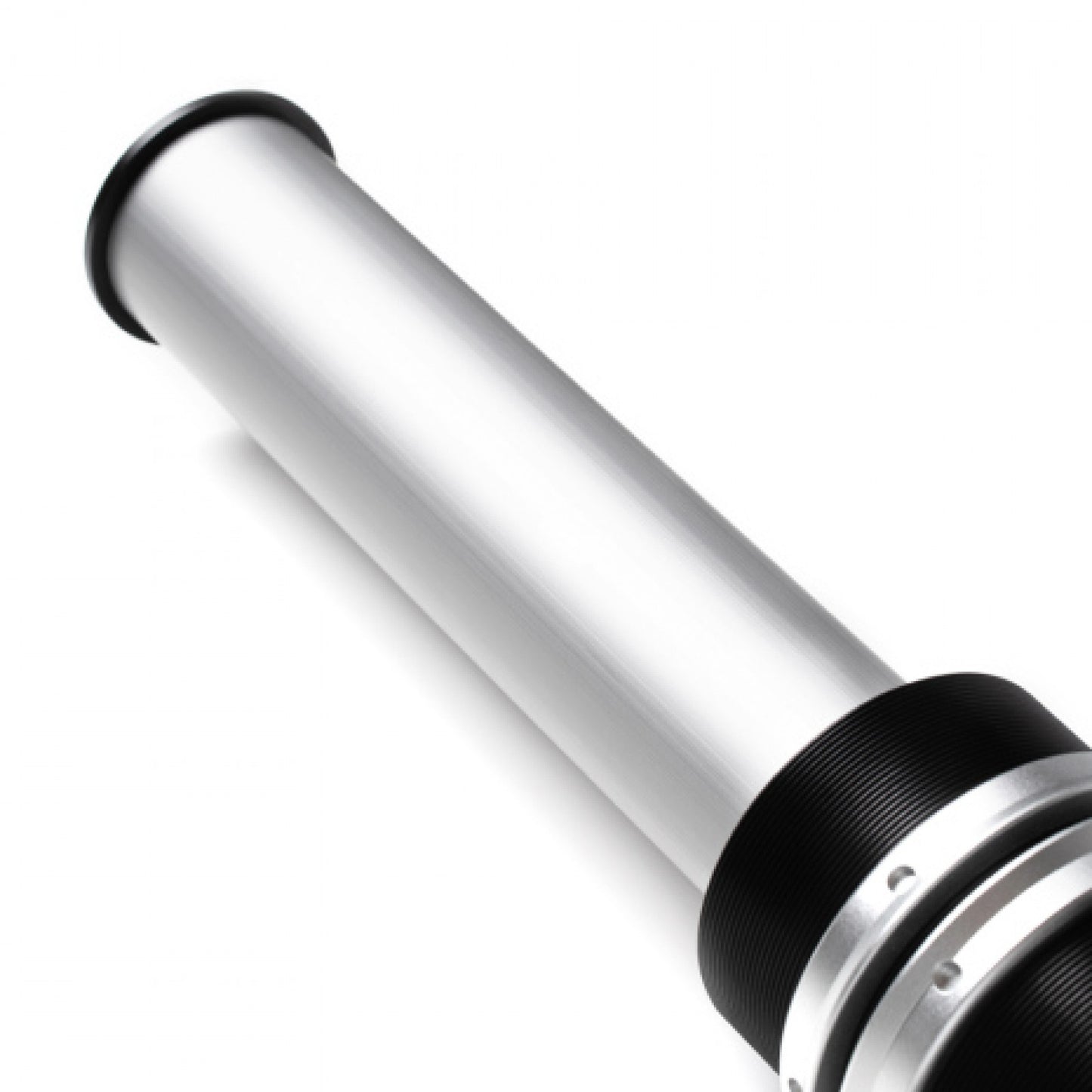

The body is made out of high strength, machined aluminum extrusion for the thinnest possible wall thickness to achieve the lowest possible weight without sacrificing functionality. It houses a high strength aluminum piston rod with an anodized finish for long lasting durability. The internal bearings are constructed of high strength, ultra durable, low friction polyoxymethylene - these air jacks are made tough to cope with the high demands from worldwide motorsports.

Works with an 8 BAR (120 PSI) common workshop air compressor

The Nuke Performance Air Jack 90C has an optimal operating pressure between 6 - 12 BAR (87 - 174 PSI), this means that it works with a regular workshop 8 BAR (120 PSI) air compressor so you do not need to bring a huge and expensive nitrogen tank. As most workshop air compressors are available in between 8 - 12 BAR (116 - 174 PSI) this is what these air jacks are specified to work with. At as low as 8 BAR (116 PSI), these air jacks will lift 402 KG (886 LB) each, and in a 4 - jack system, it results in a full 1608 KG (3545 LB). This omits the need for additional equipment such as a compressed air bottle, lance, or high - pressure system.

Air Jack 90C Safety Props reduce the possibility of accidents

When working on or beneath your vehicle, there is always a possibility of accidents. When your vehicle is lifted with the help of air jacks you must always use these air jack locks or traditional jacks to prevent an accident if the pressure drops due to leakage, malfunction or handling error. The Nuke Performance 90C Safety Props simply clip securely into place when the air jack is fully extended, are equipped with an easy to use handle and come in a practical carry bag. Safety Prop Part # : 590-01-202

Complete sets of 2 / 3 / 4 jacks for all types of motorsports use

To make it as easy as possible, for all types of motorsports such as drag racing, drifting, touring cars, sports cars, GT racing, time attack and more we have put together complete kits for 2, 3, or 4 jacks. The Air Jack Kits contains hoses, pneufit fittings, safety props, and air jacks to cover your every need. Air Jack 2pc Complete Set Part # :590-01-205 Air Jack 3pc Complete Set Part # :590-01-203 Air Jack 4pc CompleteSet Part # :590-01-204

How much do the Nuke Performance Air Jacks lift?

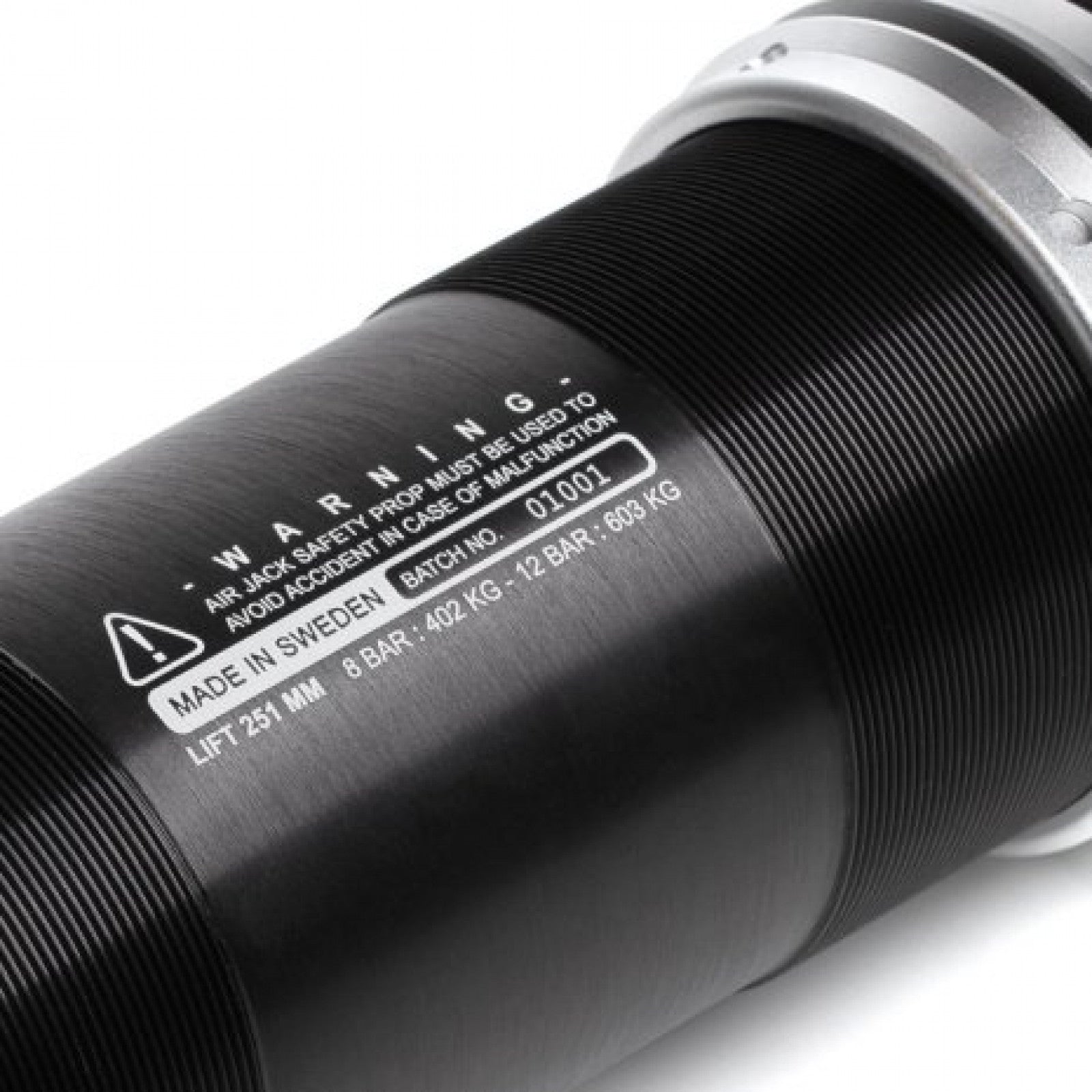

The Nuke Performance Air Jacks 90 Competition is made to use with an 8 BAR / 120 PSI air compressor, and thanks to its larger diameter and clever design it can lift 402kg (886 lb) at 8 BAR (116 PSI) and 603kg (1329 lb) at 12 BAR (174 PSI). Combining into setups of 3 or 4 air jacks, which exceeds normal needs in motorsports.

8 BAR (116 PSI) Air Jack setup :

Recommended operating pressure for a regular workshop air compressor. 1pc Air Jack : 402KG (886 LB) at 8 BAR (116 PSI) 2pc setup : 804KG (1772 LB) at 8 BAR (116 PSI) 3pc setup : 1206KG (2659 LB) at 8 BAR (116 PSI) 4pc setup : 1608KG (3545 LB) at 8 BAR (116 PSI)

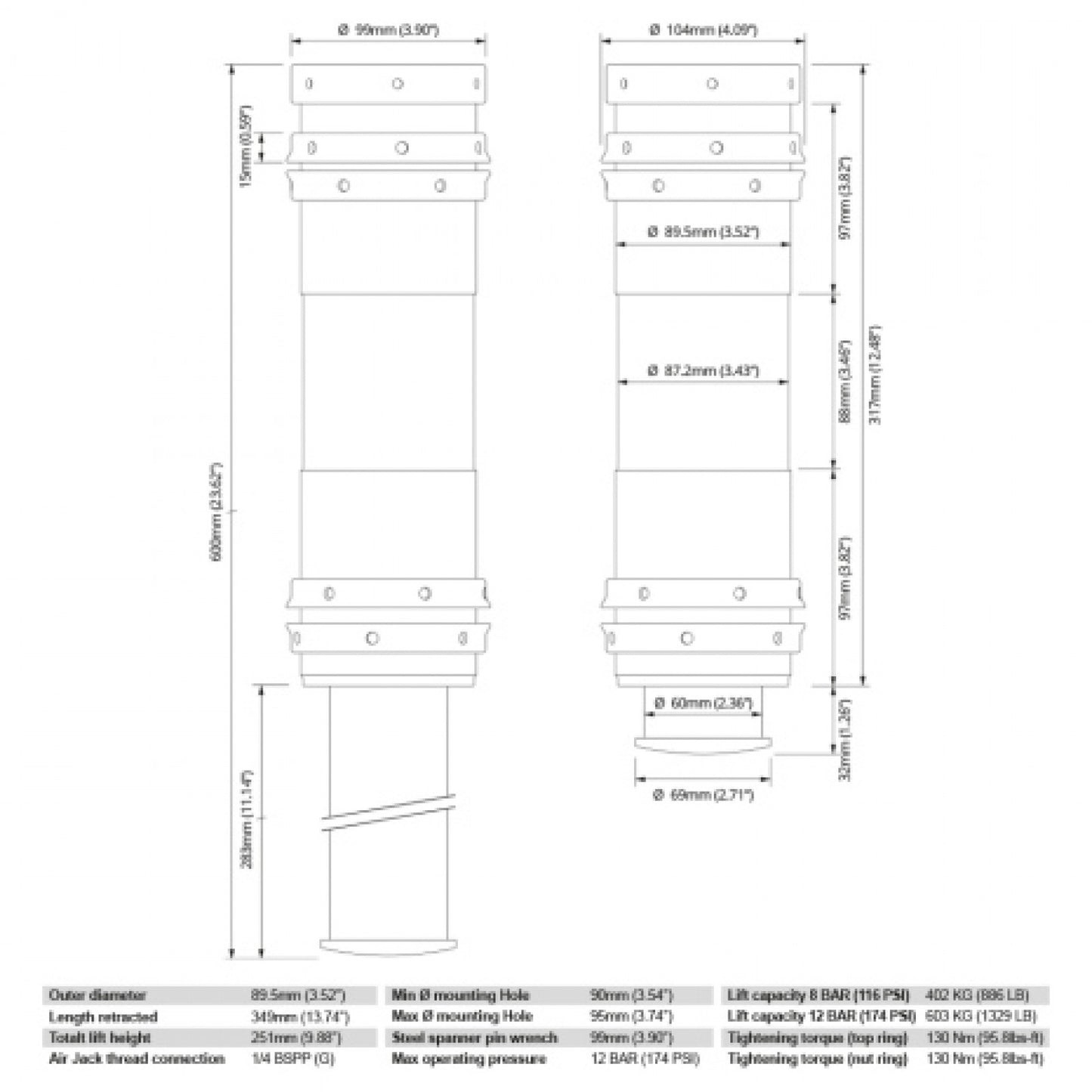

Technical information

• Body made of high strength, machined aluminum extrusion for thinnest possible wall thickness. • CNC manufactured high strength aluminum piston rod with anodized finish for long lasting durability. • High strength, ultradurable, low friction polyoxymethylene bearings. • Incorporates an internal high strength tension spring for maximum efficiency. • Lightweight, easy to replace, hard-anodized aluminum foot. • Lightweight design for motorsports use. • 4pc aluminum mounting nuts included with every jack. • 1/4 BSPP (G) thread for pneufit fitting. • Anodized finish for long lasting function and corrosion-free appearance. • Laser engraved and proudly branded with the Swedish flag.

Included in package

• 1 x Air Jack 90C • 4 X Aluminum mounting nut • 1 X User Manual
