Radium Engineering Fuel Rail - 3.2L 24v VR6

Radium Engineering Fuel Rail - 3.2L 24v VR6

FEATURES:
-Lightweight aluminum construction
-Inner bore diameter: 0.7 inch
-Anodized surface finish for wear and corrosion resistance
-No special tools required for installation
-Thermal insulating spacers

COMPATIBILITY:

• 02-09 VW Golf R32

• 01-03 VW Beetle RSi

• 06-08 VW Eos

• 02-08 VW Phaeton

• 05-10 VW Touareg

• 03-09 Audi A3

• 01-10 Audi TT

• 04-07 Porsche Cayenne

FUEL RAIL
Manufactured with A 0.7" large internal bore, the Radium Engineering fuel rail can support all necessary engine power requirements.

As shown above, there is just enough clearance with the OEM intake manifold when using OEM height fuel injectors.

Insulating mounting spacers (shown above) are provided to prevent thermal heat transfer into the fuel.

INJECTORS
Like the OEM fuel rails, the injector bores are 14mm ID so factory injectors (or any equivalent aftermarket injector) can be used.
As shown below, the factory injector retaining clips can be reused.

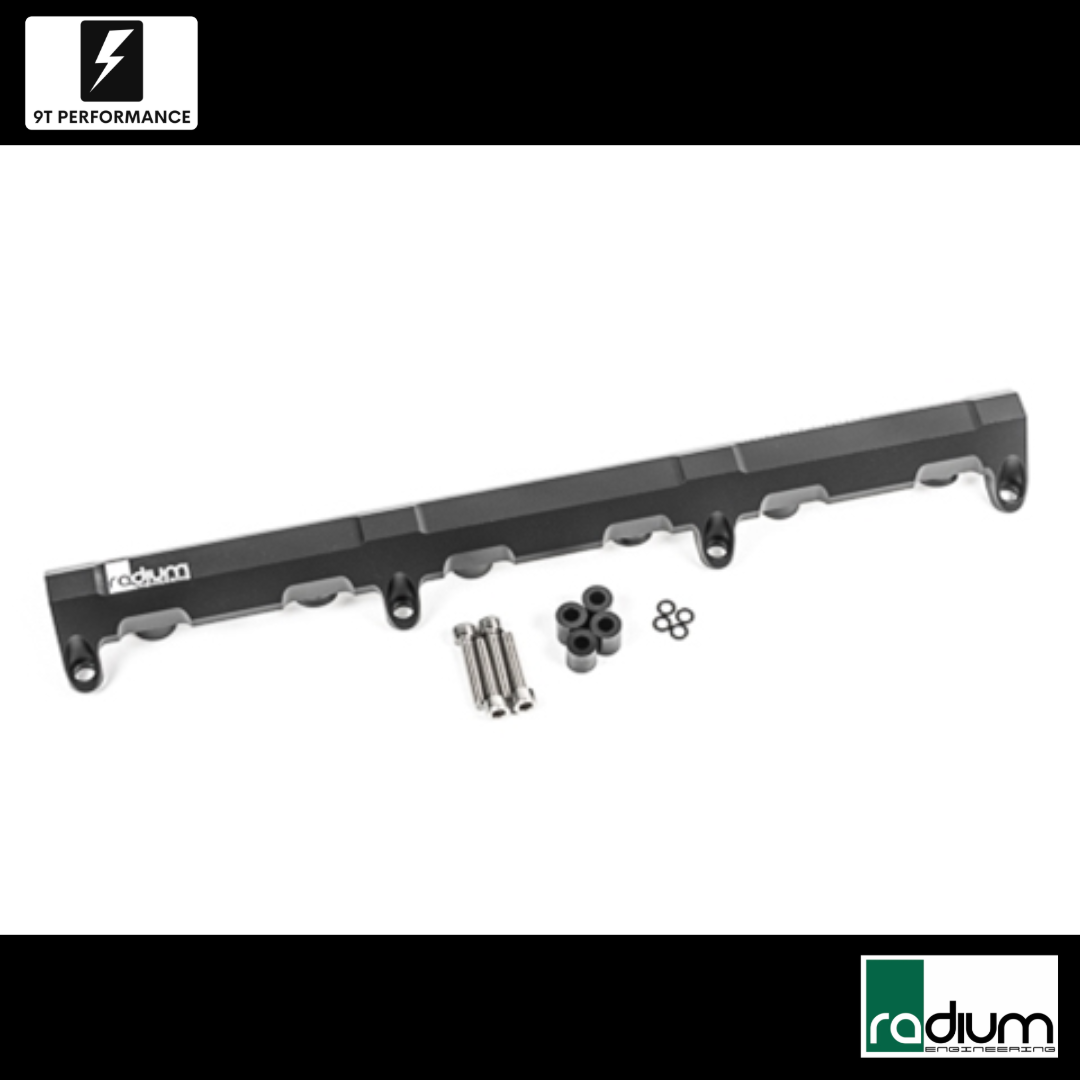

INCLUDES
1x 3.2L 24V VR6 Fuel Rail
4x Thermal Insulating Spacers
4x Rubber Spacer Retainers
4x Stainless Screws, M6x1mm
